• Features

Face seal with increased spring force.

static outside sealing-type HC



Type HC:

Face seal or flange seal for

higher inside pressure

Application Range

Pressure: ≦ 500 bar

Temperature: -150～+260℃



*Other materials are available for special operating conditions.

Our application engineers will be glad to advise you.

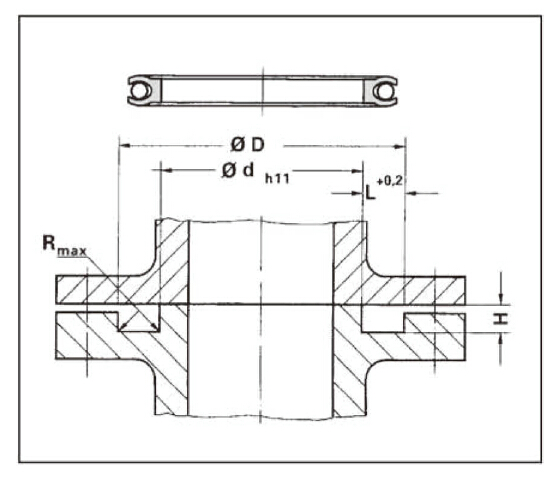

Groove I.D.	Groove O.D.	Groove Width	Groove Depth	Radius	equivalent O-Ring Cord
¢d	¢D	L	H	R	Thickness	O-Ring Code
≧5	D+4.8	2.4	1.45+0.03	0.4	1.78	A
≧10	D+7.2	3.6	2.25+0.05	0.4	2.62	B
≧15	D+9.6	4.8	3.10+0.08	0.6	3.53	C
≧22	D+14.2	7.1	4.70+0.10	0.8	5.33	D
≧30	D+19.0	9.5	6.10+0.15	0.8	6.99	E

Example of an order

Type                     VC

Groove I.D.         ¢d=100 mm

Groove O.D.         ¢D=119mm

Groove depth         L=6.1mm
