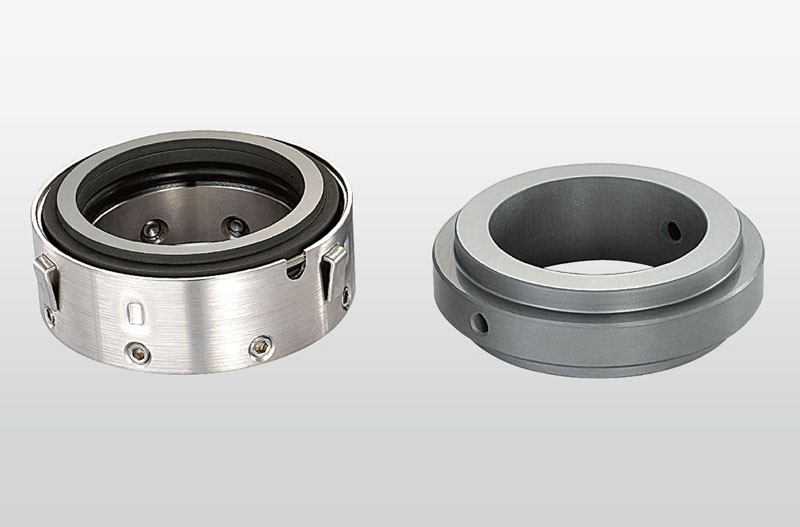

TDS ST Componente de Sello Mecánico (pulgadas)
Industrial Pump SealContact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Límites de operación:
Presión: ≤1.2MPa
Velocidad: ≤20m/s
Temperatura: -30℃~+200℃
● Anillo giratorio (SiC/TC/Carbono)
● Sello secundario (VITÓN/PTFE/Anillo encapsulado)
● Resorte y otras piezas (SUS304/SUS316)
|

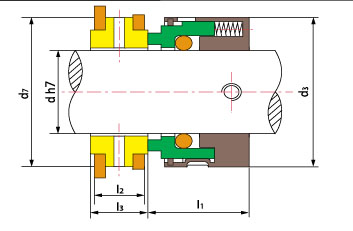

Tamaño de sello (pulgadas) |
d | d3 | d7 | l1 | l2 | l3 |
| 1 1/8" | 28.575 | 47.6 | 59.4 | 25.6 | 15.9 | 25.3 |
| 1 5/8" | 41.275 | 62.0 | 71.8 | 29.5 | 15.9 | 25.3 |
| 2 1/8" | 53.975 | 79.4 | 84.6 | 29.3 | 15.9 | 25.3 |
| 2 5/8" | 66.675 | 88.9 | 111 | 41.3 | 15.9 | 25.3 |
