• Features

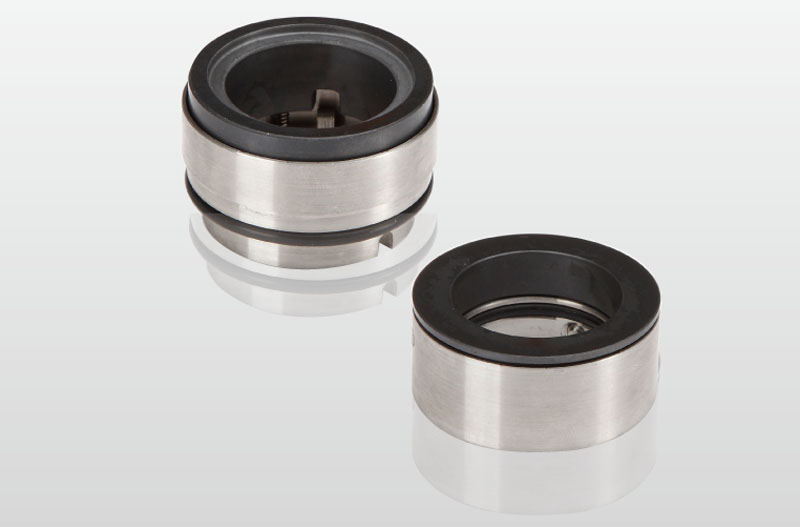

Nuestro sello mecánico de modelo HRN puede reemplazar BURGMANN HRN, que es ampliamente utilizado para las bombas industriales. La combinación de material normal inclue  SIC/SIC/NBR/SS304, SIC/SIC/VITON/SS314, TC/TC/NBR/SS316, ect. También podemos cambiar el tamaño o diseñar totalmente un nuevo sello mecánico, satisfacemos las necesidades de los clientes.

Límites de operación:
Presión: ≤2.5MPa
Velocidad: ≤20m/s
Temperatura: -20℃~+180℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (CARBON/SiC/TC)
● Sello secundario (NBR/VITON/EPDM)
● Resorte ondulado (SUS316/Hastalloy-c)
● Otras piezas (SUS304/SUS316)

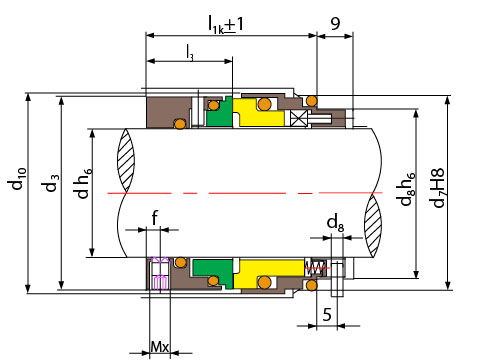

Tamano de sello d (mm)	d3	d6	d7	d8	d10	l1k	l3	f	Mx
18	33	27	33	3	34.7	37.5	19.5	3.0	4
20	35	29	35	3	36.7	37.5	19.5	3.0	4
22	37	31	37	3	38.7	37.5	19.5	3.0	4
24	39	33	39	3	40.7	40.0	20.5	3.5	5
25	40	34	40	3	41.7	40.0	20.5	3.5	5
28	43	37	43	3	44.7	42.5	21.5	3.5	5
30	45	39	45	3	46.7	42.5	21.5	3.5	5
32	48	42	48	3	49.7	42.5	21.5	3.5	5
33	48	42	48	3	49.7	42.5	21.5	3.5	5
35	50	44	50	3	51.7	42.5	21.5	3.5	5
38	56	49	56	4	57.7	45.0	24.0	4.0	6
40	58	51	58	4	59.7	45.0	24.0	4.0	6
43	61	54	61	4	62.7	45.0	24.0	4.0	6
45	63	56	63	4	64.7	45.0	24.0	4.0	6
48	66	59	66	4	67.7	45.0	24.0	4.0	6
50	70	62	70	4	71.7	47.5	25.0	4.0	6
53	73	65	73	4	74.7	47.5	25.0	4.0	6
55	75	67	75	4	76.7	47.5	25.0	4.0	6
58	78	70	78	4	80.5	52.5	28.0	4.0	6
60	80	72	80	4	82.5	52.5	28.0	4.0	6
63	83	75	83	4	85.5	52.5	28.0	4.0	6
65	85	77	85	4	87.5	52.5	28.0	4.0	6
68	90	81	90	4	92.5	52.5	28.0	4.0	6
70	92	83	92	4	94.5	60.0	34.0	6.0	8
75	97	88	97	4	100.5	60.0	34.0	6.0	8
80	105	95	105	4	108.5	60.0	34.0	6.0	8
85	110	100	110	4	113.5	60.0	34.0	6.0	8
90	115	105	115	4	118.5	65.0	39.0	10.0	8
95	120	110	120	4	123.5	65.0	39.0	10.0	8
100	125	115	125	4	128.5	65.0	39.0	10.0	8
