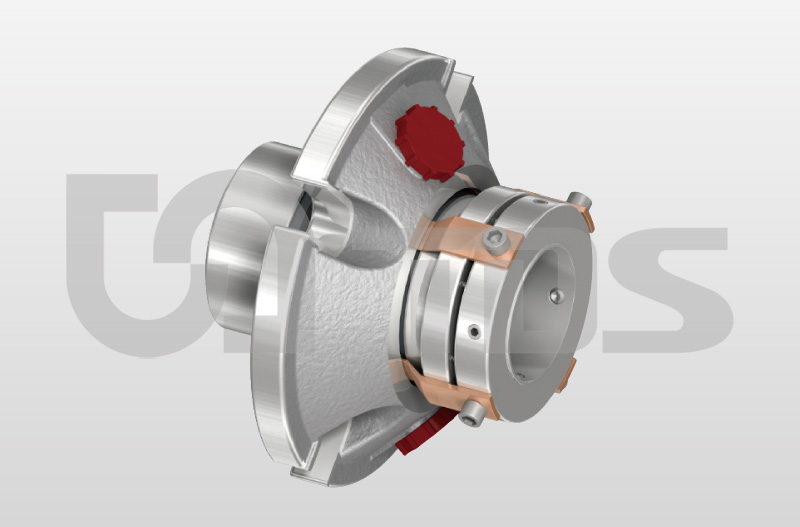

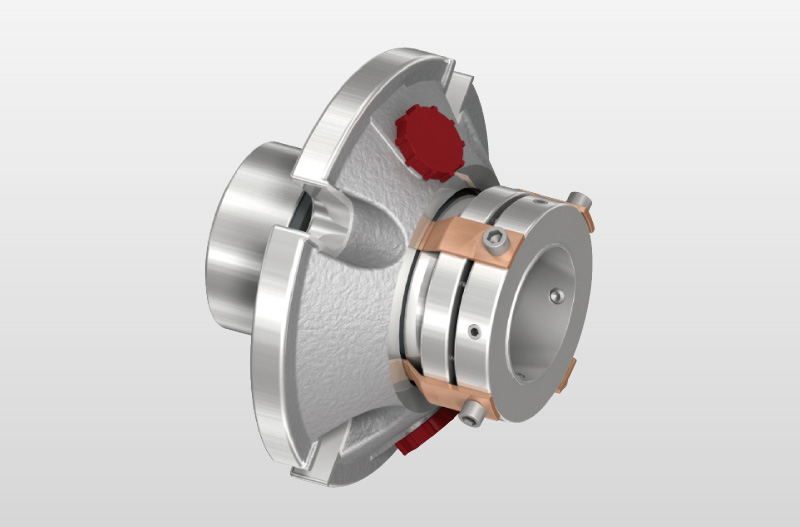

• Features

Límites de operación:
Presión: <2.1MPa(Diámetro del eje≤75mm)
<1.3MPa(Diámetro del eje>75mm)
Velocidad: ≤25m/s
Temperatura: -30℃~+205℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

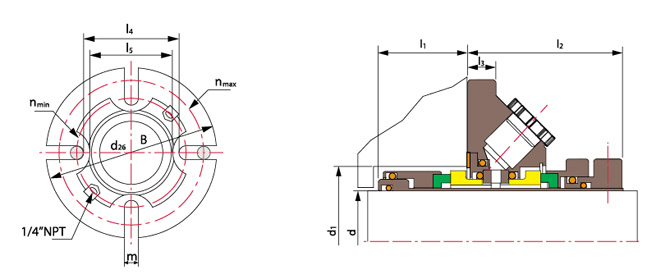

d	d26	l4	l5	l3	d1		n		m	l1	l2
(mm)					min	max	min	max	max
24	104.8	54.0	49.2	13.2	40.0	46.0	67.0	90.5	12.0	32.5	52.4
25	104.8	54.0	49.2	13.2	41.0	49.0	67.0	90.5	12.0	32.5	52.4
28	108.0	57.2	52.4	13.2	44.0	52.3	70.3	93.6	12.0	32.5	52.4
30	111.0	60.4	55.6	13.2	46.0	55.5	73.5	96.8	12.0	32.5	52.4
32	111.0	60.4	55.6	13.2	48.0	55.5	73.5	96.8	12.0	32.5	52.4
33	111.0	60.4	55.6	13.2	49.0	55.5	73.5	96.8	12.0	32.5	52.4
35	111.0	63.5	58.8	13.2	51.0	57.5	76.6	96.8	12.0	32.5	52.4
38	127.0	71.5	65.0	16.4	57.2	60.3	85.7	114.3	12.0	33.3	54.0
40	127.0	71.5	65.0	16.4	58.0	60.4	85.7	114.3	12.0	33.3	54.0
43	127.0	71.5	65.0	16.4	61.0	63.5	85.7	114.3	12.0	33.3	54.0
45	139.7	81.0	71.4	16.4	63.5	69.9	95.3	127.0	12.0	33.3	54.0
48	139.7	81.0	71.4	16.4	66.7	73.0	95.3	127.0	12.0	33.3	54.0
50	139.7	81.0	71.4	16.4	68.0	73.0	95.3	127.0	12.0	33.3	54.0
53	152.4	90.5	77.8	16.4	71.0	76.2	104.8	139.7	12.0	35.0	54.0
55	152.4	90.5	77.8	16.4	74.0	79.4	104.8	139.7	12.0	35.0	54.0
58	165.1	96.8	84.1	16.4	76.2	82.5	114.3	149.2	16.0	35.0	54.0
60	165.1	96.8	84.1	16.4	79.4	85.7	114.3	149.2	16.0	35.0	54.0
63	177.8	109.5	96.8	19.6	85.8	92.1	127.0	160.3	16.0	38.1	60.3
65	177.8	109.5	96.8	19.6	88.9	95.3	127.0	160.3	16.0	38.1	60.3
68	177.8	109.5	96.8	19.6	92.1	98.4	127.0	160.3	16.0	38.1	60.3
70	177.8	109.5	96.8	19.6	92.1	98.4	127.0	160.3	16.0	38.1	60.3
75	190.5	125.4	108.0	19.6	98.5	108.0	142.9	173.0	16.0	38.1	60.3
80	190.5	125.4	108.0	19.6	101.6	111.1	142.9	173.0	16.0	38.1	60.3
85	203.2	135.0	117.5	19.6	108.0	117.5	155.6	182.5	20.0	38.1	60.3
90	215.9	150.8	127.0	19.6	114.3	127.0	171.5	195.2	20.0	38.1	60.3
95	215.9	150.8	127.0	19.6	117.5	130.2	171.5	195.2	20.0	38.1	60.3
100	228.6	168.3	136.5	19.6	123.9	139.7	189.0	208.0	20.0	38.1	60.3
105	228.6	168.3	136.5	19.6	130.1	149.2	189.0	208.0	20.0	38.1	60.3
110	241.3	177.8	146.2	19.6	136.5	158.8	198.4	220.6	20.0	38.1	60.3
115	254.0	186.6	155.8	19.6	142.9	168.3	211.1	230.2	22.0	38.1	60.3
120	254.0	186.6	155.8	19.6	142.9	168.3	211.1	230.2	22.0	38.1	60.3
125	254.0	186.6	155.8	19.6	149.2	168.3	211.1	230.2	22.0	38.1	60.3
