• Features

Límites de operación:
Presión: ≤3.1MPa
Velocidad: ≤25m/s
Temperatura: ≤205℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/TC/Carbono)
● Sello secundario (VITÓN/AFLAS/Kalrez)
● Otras piezas (C-276/Duplex/SUS316)

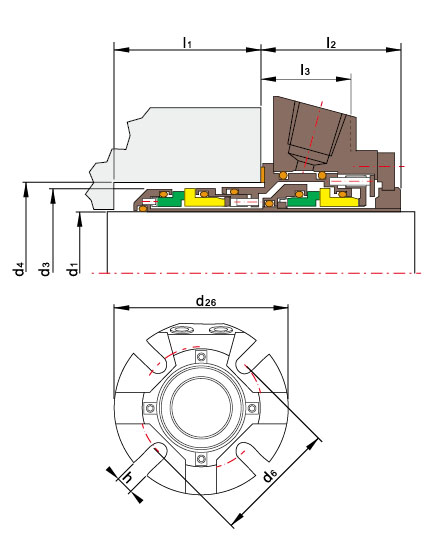

d1	d3		d4	d6			d26	l1	l2	l3	h
(pulgadas)	min	max		3/8	1/2	5/8
38	57.2	62.0	55.6	84.0	89.9**	-	114	50	54	30.4	13.5
40	60.0	68.3	57.5	89.2	91.7**	-	127	50	54	30.4	13.5
43	63.0	68.8	60.5	91.9	94.7**	-	127	50	54	30.4	13.5
45	65.0	73.4	62.5	94.2	96.8**	-	140	50	54	30.4	13.5
48	68.0	73.8	65.5	97.0	99.8**	-	140	50	54	30.4	13.5
50	70.0	78.5	67.5	99.3	101.9**	-	140	50	54	30.4	17.5
53	75.0	83.6	72.5	104.4	106.4**	112.0**	153	50	54	30.4	17.5
55	75.0	83.6	72.5	104.4	106.4**	112.0**	153	50	54	30.4	17.5
60	80.0	92.2	77.8	112.8	114.8	118.9**	153	50	54	30.4	17.5
65	88.9	100.1	84.2	124.0	126.0	129.8	164	50	54	30.4	17.5
