• Features

Límites de operación:
Presión: ≤2.3MPa
Velocidad: ≤23m/s
Temperatura: -30℃~200℃

● Anillo giratorio (Carbono/SiC/TC)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/EPDM/Karlez)
● Otras piezas (C-276/Duplex/316)

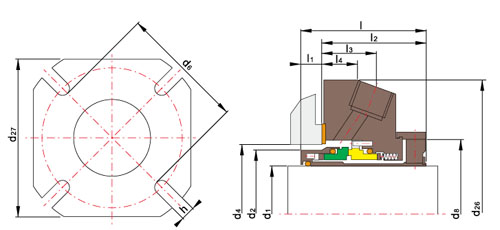

Tamaño de sello (pulgadas)	d1	d2	d4       d4		d6	d8	d26	d27	l	l1	l2	l3	l4	h
			min	max
1.000	1.000	1.538	1.625	2.000	2.401	2.008	4.134	3.900	2.194	0.394	1.800	0.807	0.469	0.551
1.125	1.125	1.678	1.750	2.125	2.559	2.183	4.375	4.000	2.194	0.394	1.800	0.800	0.469	0.551
1.250	1.250	1.853	1.875	2.250	2.618	2.34	4.134	3.900	2.194	0.394	1.800	0.835	0.551	0.551
1.375	1.375	1.932	2.000	2.312	2.697	2.418	4.375	4.100	2.194	0.394	1.800	0.846	0.520	0.551
1.500	1.500	2.084	2.250	2.750	3.177	2.783	5.315	4.500	2.269	0.394	1.875	0.970	0.630	0.551
1.625	1.625	2.209	2.375	2.750	3.177	2.783	5.315	4.500	2.269	0.394	1.875	0.807	0.610	0.551
1.750	1.750	2.334	2.500	2.937	3.297	2.982	5.475	4.625	2.269	0.394	1.875	0.957	0.630	0.551
1.875	1.875	2.459	2.625	2.937	3.297	2.982	5.475	4.625	2.269	0.394	1.875	0.957	0.630	0.551
2.000	2.000	2.569	2.750	3.062	3.450	3.108	5.906	4.900	2.269	0.394	1.875	0.970	0.630	0.689
2.125	2.125	2.709	2.875	3.437	3.821	3.346	5.906	5.375	2.269	0.394	1.875	0.970	0.610	0.689
2.250	2.250	2.834	3.000	3.625	4.030	3.493	6.475	5.500	2.269	0.394	1.875	0.970	0.630	0.689
2.375	2.375	2.959	3.125	3.625	4.030	3.493	6.475	5.500	2.269	0.394	1.875	0.970	0.630	0.689
2.500	2.500	3.084	3.250	3.875	4.280	3.785	6.725	5.800	2.269	0.394	1.875	0.933	0.630	0.689
2.625	2.625	3.209	3.375	3.875	4.280	3.785	6.725	5.800	2.269	0.394	1.875	0.933	0.630	0.689
2.750	2.750	3.334	3.500	3.937	4.405	3.871	7.100	6.000	2.269	0.394	1.875	0.957	0.630	0.689
