• Features

Límites de operación:
Presión : ≤4MPa
Velocidad: ≤20m/s
Temperatura: -40℃~+204℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/Carbon/TC)
● Sello secundario (VITON/AFLAS/Kalrez)
● Otras partes (C-276/Duplex/316)

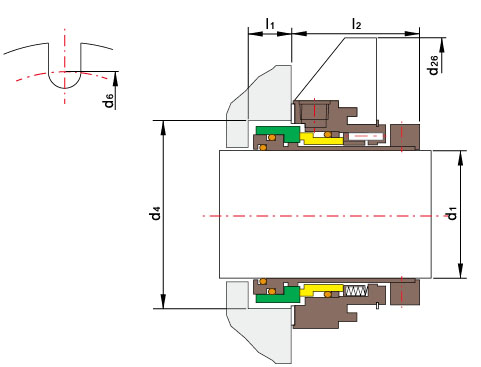

d1	d4			d6min			d26	l1	l2
(mm)	min	max	3/8"	1/2"	5/8"	3/4"		min
1.000	1.750	2.000	2.880	3.010	3.130	-	4.650	0.630	1.890
1.125	1.880	2.030	2.92	3.050	3.170	-	4.690	0.630	1.890
1.125***	1.880	2.030	2.92	3.050	3.170	-	4.690	0.630	1.890
1.250	2.000	2.260	3.13	3.260	3.380	-	4.900	0.630	1.890
1.375	2.130	2.420	3.27	3.400	3.520	-	5.040	0.630	1.890
1.375***	2.000	2.420	3.27	3.400	3.520	-	5.040	0.630	1.890
1.500	2.250	2.620	3.46	3.590	3.710	-	5.230	0.630	1.890
1.625	2.380	2.680	3.52	3.650	3.770	-	5.290	0.630	1.890
1.750	2.500	2.800	3.64	3.770	3.890	-	5.410	0.630	1.890
1.875	2.630	2.930	3.76	3.890	4.010	-	5.530	0.630	1.890
2.000	2.750	3.180	3.97	4.100	4.220	-	5.740	0.630	1.890
2.125	2.880	3.430	4.27	4.400	4.530	-	6.040	0.630	1.890
2.250	3.000	3.550	4.38	4.510	4.630	-	6.140	0.630	1.890
2.375	3.130	3.590	4.52	4.650	4.770	-	6.290	0.630	1.890
2.500	3.250	3.800	4.65	4.780	4.900	-	6.410	0.630	1.890
2.625	3.630	4.000	-	5.350	5.480	5.600	7.630	0.880	2.500
2.750	3.750	4.130	-	5.480	5.600	5.730	7.760	0.880	2.500
2.875	3.880	4.250	-	5.600	5.730	5.850	7.880	0.880	2.500
3.000	4.000	4.440	-	5.730	5.850	5.980	8.010	0.880	2.500
3.125	4.130	4.550	-	5.850	5.980	6.100	8.130	0.880	2.500
3.250	4.250	4.690	-	5.980	6.100	6.230	8.260	0.880	2.500
3.375	4.380	4.800	-	6.100	6.230	6.350	8.380	0.880	2.500
3.500	4.500	4.940	-	6.230	6.350	6.480	8.510	0.880	2.500
3.625	4.630	5.050	-	6.350	6.480	6.600	8.630	0.880	2.500
3.750	4.750	5.140	-	6.480	6.600	6.730	8.760	0.880	2.500
3.875	4.880	5.260	-	6.600	6.730	6.850	8.880	0.880	2.500
4.000	5.000	5.440	-	6.730	6.850	6.980	9.010	0.880	2.500
4.125	5.130	5.550	-	6.850	6.980	7.100	9.130	0.880	2.500
4.250	5.250	5.690	-	6.890	7.020	7.140	9.180	0.880	2.500
4.375	5.380	5.810	-	7.020	7.140	7.270	9.300	0.880	2.500
4.500	5.500	5.940	-	7.140	7.270	7.390	9.430	0.880	2.500
4.625	5.630	6.060	-	7.270	7.390	7.520	9.560	0.880	2.500
4.750	5.750	6.220	-	7.470	7.600	7.720	9.760	0.880	2.500
