• Features

Límites de operación:
Presión : ≤4MPa
Velocidad: ≤20m/s
Temperatura: -40℃~+204℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/Carbon/TC)
● Sello secundario (VITON/AFLAS/Kalrez)
● Otras partes (C-276/Duplex/316)

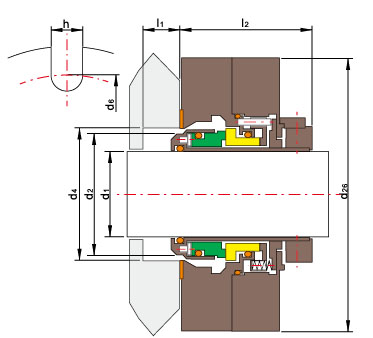

d1	d2		d4	d6	d26	l1	l2			h
(mm)	min	max					3/8"	1/2"	5/8"
1.750	2.500	2.810	0.69	0.570	5.490	1.910	3.620	3.75*	-	1.270
1.875	2.630	2.940	0.69	0.570	5.490	1.910	3.750	3.85*	-	1.270
2.000	2.750	3.190	0.69	0.570	5.490	1.910	4.000	4.130	-	1.270
2.125	2.880	3.440	0.69	0.690	5.990	1.910	4.250	4.380	4.500	1.270
2.250	3.000	3.560	0.69	0.690	5.990	1.910	4.370	4.500	4.620	1.270
2.375	3.130	3.590	0.69	0.690	5.990	1.910	4.430	4.560	4.680	1.270
2.500	3.250	3.810	0.69	0.690	6.490	1.910	4.620	4.750	4.870	1.270
2.625	3.630	4.040	0.88	0.690	6.450	2.500	5.020	5.150	-	1.770
2.750	3.750	4.380	0.88	0.690	7.700	2.500	5.420	5.550	-	1.770
2.875	3.880	4.500	0.88	0.690	7.830	2.500	5.500	5.620	-	1.770
3.000	4.000	4.690	0.88	0.690	7.940	2.500	5.650	5.770	-	1.770
3.125	4.130	4.810	0.88	0.690	7.990	2.500	5.800	5.920	-	1.770
3.250	4.250	4.940	0.88	0.690	8.190	2.500	5.930	6.050	-	1.770
3.375	4.380	5.060	0.88	0.810	8.300	2.500	6.020	6.140	6.270	1.770
3.500	4.500	5.190	0.88	0.810	8.440	2.500	6.180	6.310	6.430	1.770
3.625	4.630	5.310	0.88	0.810	8.490	2.500	6.310	6.440	6.560	1.770
3.750	4.750	5.390	0.88	0.810	8.710	2.500	6.380	6.510	6.630	1.770
3.875	4.880	5.510	0.88	0.810	8.840	2.500	6.520	6.640	6.770	1.770
4.000	5.000	5.690	0.88	0.810	8.960	2.500	6.660	6.780	6.910	1.770
4.125	5.130	5.810	0.88	0.810	8.990	2.500	6.790	6.900	7.030	1.770
4.250	5.250	5.940	0.88	0.810	8.990	2.500	6.910	7.040	7.160	1.770
4.375	5.380	6.060	0.88	0.810	9.330	2.500	7.030	7.150	7.280	1.770
4.500	5.500	6.190	0.88	0.810	9.490	2.500	7.180	7.300	7.430	1.770
4.625	5.630	6.310	0.88	0.810	9.490	2.500	7.280	7.400	7.530	1.770
4.750	5.750	6.470	0.88	0.810	10.490	2.500	7.400	7.530	7.650	1.770
