• Features

Límites de operación:
Presión: ≤2.3MPa
Velocidad: ≤23m/s
Temperatura: -30℃~200℃

● Anillo giratorio (Carbon/SiC/TC)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/AFLAS/Kalrez)
● Otras piezas (C-276/DUPLEX/316)

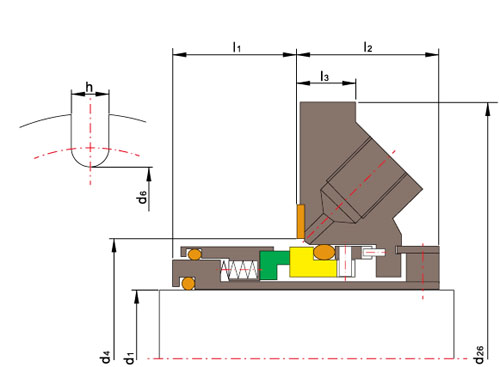

d1	d4		d6	d26	l1	l2	l3	h
(mm)	min	max						max
1.000	1.625	1.937	2.187	4.125	1.055	1.354	0.492	0.562
1.125	1.75	2.062	2.312	4.250	1.055	1.354	0.492	0.562
1.250	1.875	2.187	2.437	4.375	1.055	1.354	0.492	0.562
1.375	2.000	2.312	2.625	4.375	1.055	1.354	0.492	0.562
1.500	2.250	2.500	2.875	5.000	1.090	1.393	0.644	0.562
1.625	2.375	2.500	2.875	5.000	1.090	1.393	0.644	0.562
1.750	2.500	2.625	3	5.250	1.090	1.393	0.644	0.562
1.875	2.625	3.000	3.312	5.500	1.090	1.393	0.644	0.562
2.000	2.750	3.000	3.312	5.500	1.150	1.413	0.644	0.562
2.125	2.875	3.312	3.687	5.750	1.150	1.413	0.644	0.687
2.250	3.000	3.312	3.687	5.750	1.150	1.413	0.644	0.687
2.375	3.125	3.562	3.937	6.000	1.150	1.413	0.644	0.687
2.500	3.375	3.687	4.187	6.250	1.199	1.413	0.644	0.687
2.625	3.500	3.750	4.187	6.250	1.199	1.413	0.644	0.687
2.750	3.625	3.875	4.187	6.250	1.199	1.413	0.644	0.687
