• Features

Límites de operación:
Presión : ≤2.5MPa
Velocidad: ≤16m/s
Temperatura: -40℃~220℃


● Anillo giratorio(SiC/TC)
● Anillo estacionario (SiC/TC/Carbon)
● Sello secundario(VITON/PTFE/Encapsulated/NBR/Kalrez)
● Otras piezas(C-276/Duplex/316/304)

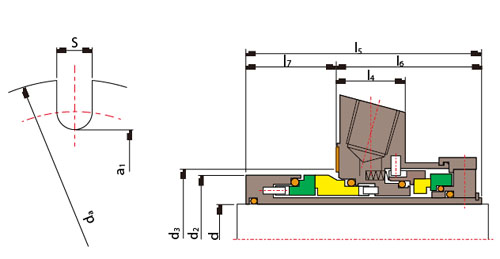

d (pulgadas)	d2	d3	d3	l4	l5	l6	l7	a1	da	s
		min	max
1.000	1.693	1.750	2	1.000	3.400	2.102	1.303	2.440	4.134	0.520
1.125	1.811	1.875	2.05	1.000	3.400	2.102	1.303	2.440	4.134	0.520
1.250	1.960	2.000	2.25	1.000	3.400	2.102	1.303	2.640	4.330	0.520
1.375	2.086	2.125	2.42	1.000	3.400	2.102	1.303	2.750	4.449	0.520
1.500	2.200	2.000	2.625	1.000	3.400	2.102	1.303	2.950	4.842	0.520
1.625	2.340	2.250	2.7	1.000	3.400	2.102	1.303	3.030	4.842	0.599
1.750	2.460	2.375	2.812	1.000	3.400	2.102	1.303	3.190	5.433	0.599
1.875	2.582	2.500	2.94	1.000	3.400	2.102	1.303	3.190	5.433	0.599
2.000	2.677	2.625	3.19	1.000	3.400	2.102	1.303	3.430	5.827	0.599
2.125	2.834	2.750	3.437	1.000	3.400	2.102	1.303	3.820	5.827	0.709
2.250	2.960	2.875	3.56	1.000	3.400	2.102	1.303	3.940	6.181	0.709
2.375	3.070	3.000	3.59	1.000	3.400	2.102	1.303	4.020	6.181	0.709
2.500	3.212	3.125	3.8	1.000	3.400	2.102	1.303	4.170	6.417	0.709
2.625	3.338	3.250	3.937	1.000	3.400	2.102	1.303	4.290	6.417	0.709
2.750	3.660	3.375	4.25	1.000	3.400	2.102	1.303	4.650	7.008	0.709
2.875	3.811	3.875	4.567	1.000	4.250	2.516	1.736	4.960	7.283	0.709
3.000	3.937	4.000	4.646	1.102	4.250	2.516	1.736	5.079	7.480	0.709
3.125	4.063	4.125	4.764	1.102	4.250	2.516	1.736	5.197	7.677	0.709
3.250	4.189	4.250	4.882	1.102	4.250	2.516	1.736	5.315	7.677	0.709
3.375	4.311	4.375	5.039	1.102	4.250	2.516	1.736	5.472	7.795	0.866
3.500	4.437	4.500	5.157	1.102	4.250	2.516	1.736	5.591	7.795	0.866
3.625	4.563	4.625	5.315	1.102	4.250	2.516	1.736	5.709	8.071	0.866
3.750	4.689	4.750	4.433	1.102	4.250	2.516	1.736	5.827	8.189	0.866
4.000	4.937	5.000	5.669	1.102	4.250	2.516	1.736	6.063	8.583	0.866
