• Features

Límites de operación:
Presión: ≤2.3MPa
Velocidad: ≤16m/s
Temperatura: -30℃~200℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/EPDM/Kalrez)
● Otras piezas (SUS304/SUS316)

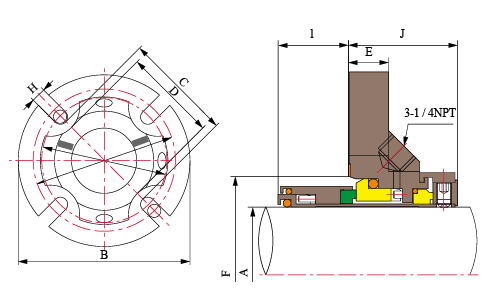

A (pulgadas)	B	C	D	E	F		G		H	I	J
					min	max	min	max	max
24	104.8	54	49.2	13.2	40	46	67	90.5	12	28.6	40.5
25	104.8	54	49.2	13.2	41	49	67	90.5	12	28.6	40.5
28	108	57.2	52.4	13.2	44	52.3	70.3	93.6	12	28.6	40.5
30	111	60.4	55.6	13.2	46	55.5	73.5	96.8	12	28.6	40.5
32	111	60.4	55.6	13.2	48	55.5	73.5	96.8	12	28.6	40.5
33	111	60.4	55.6	13.2	49	55.5	73.5	96.8	12	28.6	40.5
35	111	63.5	58.8	13.2	51	57.5	76.6	96.8	12	28.6	40.5
38	127	71.5	65	16.4	57.2	60.4	85.7	114.3	12	28.6	44.5
40	127	71.5	65	16.4	58	60.4	85.7	114.3	12	28.6	44.5
43	139.7	81	71.4	16.4	61	69.9	95.3	127	12	28.6	44.5
45	139.7	81	71.4	16.4	63.5	69.9	95.3	127	12	28.6	44.5
48	139.7	81	71.4	16.4	66.7	73	95.3	127	12	28.6	44.5
50	152.4	90.5	77.8	16.4	68	76.2	104.8	139.7	12	28.6	44.5
53	152.4	90.5	77.8	16.4	71	76.2	104.8	139.7	12	28.6	44.5
55	165.1	96.8	84.1	16.4	74	82.5	114.3	149.2	16	28.6	44.5
58	165.1	96.8	84.1	16.4	76.2	82.6	114.3	149.2	16	28.6	44.5
60	165.1	96.8	84.1	16.4	79.4	85.7	114.3	149.2	16	28.6	44.5
63	177.8	109.5	96.8	19.6	85.8	92.1	127	160.3	16	31.8	47.7
65	177.8	109.5	96.8	19.6	88.9	95.3	127	160.3	16	31.8	47.7
68	177.8	109.5	96.8	19.6	92.1	98.4	127	160.3	16	31.8	47.7
70	177.8	109.5	96.8	19.6	92.1	98.4	127	160.3	16	31.8	47.7
75	190.5	125.4	108	19.6	98.5	108	142.9	173	16	31.8	47.7
80	190.5	125.4	108	19.6	101.6	111.1	142.9	173	16	31.8	47.7
85	203.2	135	117.5	19.6	108	117.5	155.6	182.5	20	31.8	47.7
90	215.9	150.8	127	19.6	114.3	127	171.5	195.2	20	31.8	47.7
95	215.9	150.8	127	19.6	117.5	130.2	171.5	195.2	20	31.8	47.7
100	228.6	168.3	136.5	19.6	123.9	139.7	188.9	207.9	20	31.8	47.7
105	228.6	168.3	136.5	19.6	130.1	149.2	189	208	20	31.8	47.7
110	241.3	177.8	146.1	19.6	136.5	158.8	198.4	220.6	20	31.8	47.7
115	254	186.6	155.6	19.6	142.9	168.3	211.1	230.2	22	31.8	47.7
120	254	186.6	155.6	19.6	142.9	168.3	211.1	230.2	22	31.8	47.7
125	254	186.6	155.6	19.6	149.2	168.3	211.1	230.2	22	31.8	47.7
