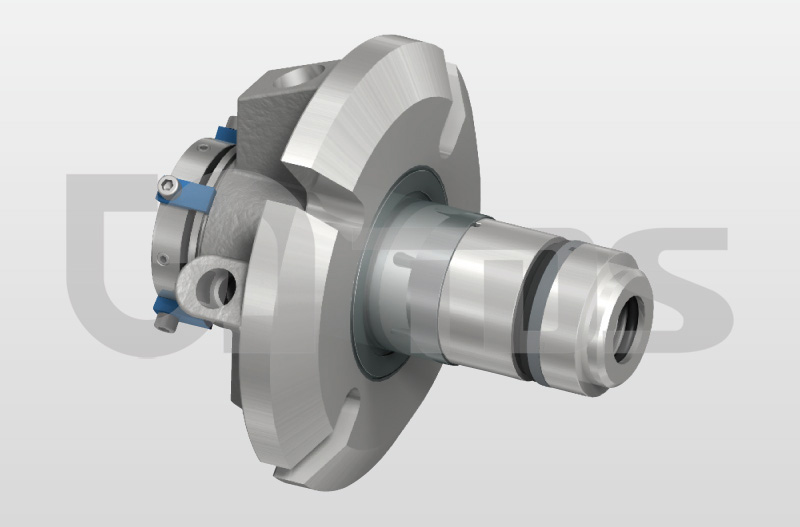

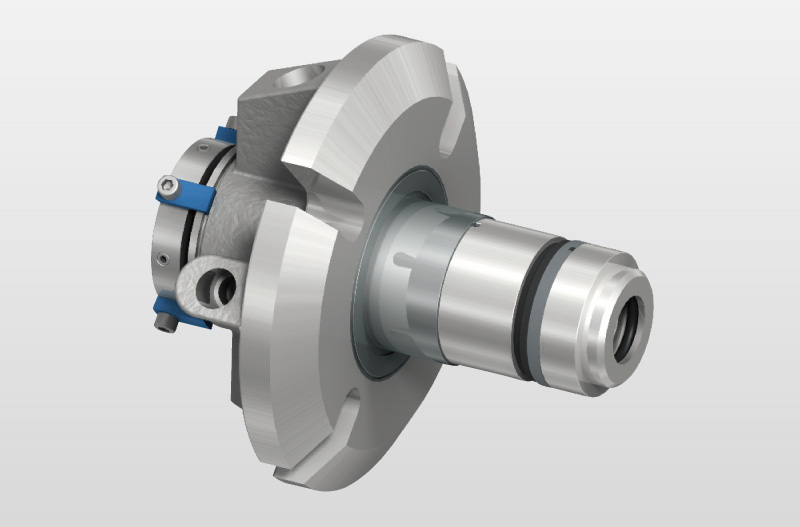

• Features

Límites de operación:
Presión: <2.1MPa( Diámetro del eje≤75mm)
<1.3MPa(Diámetro del eje>75mm)
Velocidad: ≤25m/s
Temperatura: -30℃~+205℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/Carbono)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

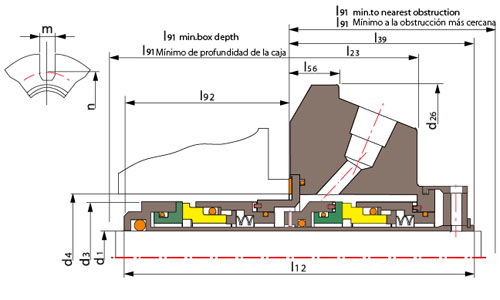

d1 (mm)	d3	d4		d26	l12	l23	l39	l56	l90	l91	l92	m	n
		min	max
24	39.7	41.3	48.0	101.6	94.1	34.4	49.6	13.5	50.8	47.7	44.5	13.3	71.2
25	39.7	41.3	48.0	101.6	94.1	34.4	49.6	13.5	50.8	47.7	44.5	13.3	71.2
28	42.9	44.5	51.2	104.8	97.8	36.7	52.4	13.5	54.0	48.6	45.4	13.3	74.5
30	44.5	46.1	56.5	108.0	97.8	36.7	52.4	13.5	54.0	48.6	45.4	13.3	79.9
32	46.0	47.6	58.3	108.0	97.8	36.7	52.4	13.5	54.0	48.6	45.4	13.3	81.6
33	49.3	50.8	61.5	111.1	97.8	36.7	52.4	13.5	54.0	48.6	45.4	13.3	84.8
35	49.3	50.8	61.5	111.1	97.8	36.7	52.4	13.5	54.0	48.6	45.4	13.3	84.8
38	55.5	57.2	68.1	123.8	101.5	37.8	54.0	15.1	55.5	50.7	47.5	13.3	91.4
40	58.7	60.3	71.4	127.0	101.5	37.8	54.0	15.1	55.5	50.7	47.5	14.3	95.7
43	61.1	63.0	74.1	133.4	101.5	37.8	54.0	15.1	55.5	50.7	47.5	14.3	98.4
45	61.1	63.0	74.1	133.4	101.5	37.8	54.0	15.1	55.5	50.7	47.5	14.3	98.4
48	64.7	66.7	74.1	133.4	101.5	37.8	54.0	15.1	55.5	50.7	47.5	14.3	98.4
50	67.9	70.0	76.6	139.7	110.6	40.7	58.7	27.0	60.3	55.0	51.9	14.3	101.6
53	71.1	73.0	85.3	148.8	110.6	40.7	58.7	15.1	60.3	55.0	51.9	17.4	113.5
55	72.9	75.0	85.3	148.8	110.6	40.7	58.7	15.1	60.3	55.0	51.9	17.4	113.5
58	74.2	76.2	88.5	165.1	110.6	40.7	58.7	15.1	60.3	55.0	51.9	17.4	116.0
60	77.4	79.4	91.7	165.1	115.4	43.6	62.6	15.9	64.2	56.0	52.8	17.4	119.9
63	83.8	85.7	98.8	171.5	115.4	43.6	65.1	15.9	66.7	53.5	50.3	17.4	127.0
65	83.8	85.7	98.8	171.5	115.4	43.6	65.1	15.9	66.7	53.5	50.3	17.4	127.0
68	90.2	92.1	103.2	171.5	116.7	41.3	63.5	15.9	65.1	56.4	53.2	17.4	131.3
70	90.2	92.1	103.2	171.5	116.7	41.3	63.5	15.9	65.1	56.4	53.2	17.4	131.3
75	98.1	101.6	113.5	196.9	116.7	45.4	65.1	17.4	66.7	54.8	51.6	20.6	145.3
80	102.2	105.0	116.8	188.9	119.0	40.5	63.8	\	66.9	58.5	55.3	20.6	148.5
85	107.9	111.1	123.2	206.4	119.0	40.5	65.1	\	68.3	57.2	54.0	20.6	154.8
90	114.3	117.5	129.5	212.7	119.0	40.5	65.1	\	68.3	57.2	54.0	17.5	158.6
95	117.5	120.0	132.1	222.3	119.0	40.5	65.1	\	68.3	57.2	54.0	17.5	172.0
100	123.8	127.0	139.7	228.6	119.0	40.5	65.1	\	68.3	57.2	54.0	20.6	171.7
105	127.0	130.2	142.9	228.6	119.0	40.5	65.1	\	68.3	57.2	54.0	20.6	174.9
110	136.5	139.7	152.4	241.3	119.0	40.5	65.1	\	68.3	57.2	54.0	20.6	184.4
115	136.5	139.7	152.4	241.3	119.0	40.5	65.1	\	68.3	57.2	54.0	20.6	184.4
120	142.9	146.1	160.4	263.5	119.0	40.5	65.1	\	68.3	57.2	54.0	20.6	192.4
125	155.6	171.7	184.4	304.8	140.1	44.4	77.3	\	80.5	66.0	62.8	20.6	254.0
130	161.9	178.1	190.8	311.2	140.1	44.4	77.3	\	80.5	66.0	62.8	20.6	260.4
135	168.3	190.5	203.2	322.3	140.1	44.4	77.3	\	80.5	66.0	62.8	20.8	266.7
140	168.3	190.5	203.2	322.3	140.1	44.4	77.3	\	80.5	66.0	62.8	20.8	266.7
