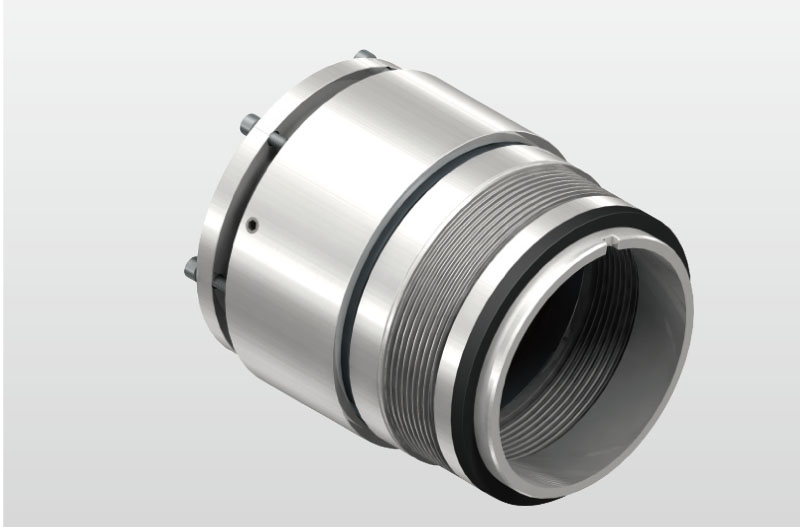

TDSMB-J04 Sello Mecánico de Fuelle Metálico (Reemplaza JOHN CRANE 604 )
Metal Bellows SealContact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Límites de operación:
Presión: ≤2MPa(Parte con onda simple)
≤6.9MPa(Parte con onda doble)
Velocidad: ≤25m/s
Temperatura: -75℃~+425℃
● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/Carbono)
● Sello secundario (Carbono flexible)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)
|
Eje (mm) |
d | d1 | l1 | l2 |
| 25 | 25 | 49.20 | 50.01 | 28.91 |
| 30 | 30 | 52.37 | 50.01 | 28.91 |
| 32 | 32 | 55.55 | 50.01 | 28.91 |
| 35 | 35 | 58.72 | 49.23 | 28.91 |
| 38 | 38 | 65.07 | 52.40 | 30.25 |
| 40 | 40 | 65.07 | 52.32 | 31.04 |
| 45 | 45 | 68.25 | 52.32 | 31.85 |
| 48 | 48 | 71.42 | 52.37 | 31.85 |
| 50 | 50 | 74.60 | 52.32 | 32.64 |
| 55 | 55 | 80.95 | 55.42 | 33.43 |
| 60 | 60 | 87.30 | 55.52 | 35.03 |
| 65 | 65 | 90.47 | 55.47 | 35.81 |
| 70 | 70 | 100.00 | 57.15 | 40.84 |
| 75 | 75 | 106.35 | 57.15 | 40.84 |
| 80 | 80 | 109.52 | 57.15 | 40.84 |
| 85 | 85 | 115.87 | 57.96 | 40.84 |
| 90 | 90 | 119.05 | 60.27 | 41.91 |
| 95 | 95 | 125.40 | 60.33 | 41.91 |
| 100 | 100 | 128.57 | 60.33 | 41.91 |
