• Features

Límites de operación:
Presión : ≤2MPa
Velocidad: ≤20m/s
Temperatura: -73℃~+427℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/TC/Carbono)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio)
● Otras piezas (Acero inoxidable series 300)

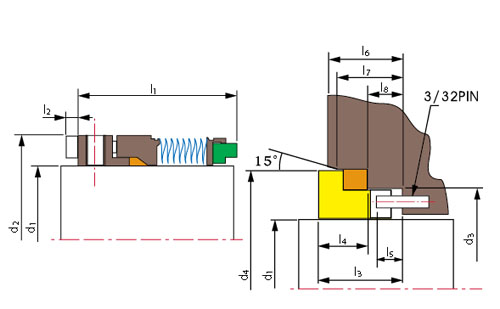

d1	d2	l1	l2
(pulgadas)
1.000	1.562	1.687	0.125
1.125	1.687	1.562	0.125
1.250	1.812	1.562	0.125
1.375	1.937	1.750	0.125
1.500	2.170	1.750	0.164
1.625	2.295	1.750	0.164
1.750	2.420	1.750	0.164
1.875	2.545	1.750	0.164
2.000	2.670	1.750	0.164
2.125	2.795	1.750	0.164
2.250	2.920	1.875	0.164
2.375	3.045	1.875	0.164
2.500	3.187	1.875	0.164
2.625	3.312	1.875	0.164

d1	d2	l1	l2
(inches/pulgadas)
25	39.7	42.8	3.2
28	42.8	39.7	3.2
30	46.0	42.8	3.2
32	46.0	42.8	3.2
35	49.2	44.5	3.2
38	55.1	44.5	4.2
40	58.3	44.5	4.2
42	61.5	44.5	4.2
45	62.3	44.5	4.2
48	64.6	44.5	4.2
50	67.8	44.5	4.2
55	74.2	47.6	4.2
60	77.3	47.6	4.2
65	84.1	47.6	4.2

d1	d4	l3	d3	l6	l7	l8	l4	l5
(inches/pulgadas)
1.000	1.625	0.437	1.384	0.551	0.390	0.240	0.261	0.125
1.125	1.750	0.437	1.509	0.551	0.390	0.240	0.261	0.125
1.250	1.875	0.437	1.634	0.551	0.390	0.240	0.261	0.125
1.375	2.000	0.437	1.759	0.551	0.390	0.240	0.261	0.125
1.500	2.125	0.437	1.884	0.551	0.390	0.240	0.261	0.125
1.625	2.375	0.500	2.134	0.592	0.431	0.251	0.314	0.125
1.750	2.500	0.500	2.259	0.592	0.431	0.251	0.314	0.125
1.875	2.625	0.500	2.384	0.592	0.431	0.251	0.314	0.125
2.000	2.750	0.500	2.509	0.592	0.431	0.251	0.314	0.125
2.125	3.000	0.562	2.759	0.641	0.480	0.300	0.346	0.156
2.250	3.125	0.562	2.884	0.641	0.480	0.300	0.346	0.156
2.375	3.250	0.562	3.009	0.641	0.480	0.300	0.346	0.156
2.500	3.375	0.562	3.134	0.641	0.480	0.300	0.346	0.156
2.625	3.375	0.625	3.134	0.682	0.521	0.341	0.379	0.170

d1	d4	l3	d3	l6	l7	l8	l4	l5
(inches/pulgadas)
25	41.2	11.1	35.1	14.0	9.9	6.1	6.6	3.1
28	44.4	11.1	38.3	14.0	9.9	6.1	6.6	3.1
30	47.6	11.1	41.5	14.0	9.9	6.1	6.6	3.1
32	47.6	11.1	41.5	14.0	9.9	6.1	6.6	3.1
35	50.8	11.1	44.6	14.0	9.9	6.1	6.6	3.1
38	53.9	11.1	47.8	14.0	9.9	6.1	6.6	3.1
40	60.3	12.7	54.2	15.0	10.9	6.3	7.9	3.1
42	63.5	12.7	57.3	15.0	10.9	6.3	7.9	3.1
45	66.6	12.7	60.5	15.0	10.9	6.3	7.9	3.1
48	69.8	12.7	63.7	15.0	10.9	6.3	7.9	3.1
50	76.2	14.2	70	16.2	12.1	7.6	8.7	3.9
55	79.3	14.2	73.2	16.2	12.1	7.6	8.7	3.9
60	82.5	14.2	76.4	16.2	12.1	7.6	8.7	3.9
65	85.7	15.8	79.6	17.3	13.2	8.6	9.6	4.3
