• Features

Límites de operación:
Presión : ≤2MPa
Velocidad: ≤25m/s
Temperatura: -30℃~+200℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/TC/Carbono)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio)
● Otras piezas (Acero inoxidable series 300)

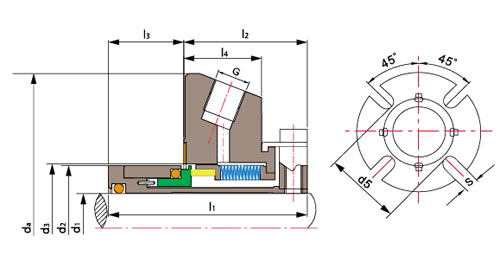

Tamaño de sello d(mm)	d1	d2	d3		da	l1	l2	l3	l4	S	G (Inches)	d5
			min	max
25	25	43.0	44.0	51.0	105	67	42.4	24.6	25.4	14	1/4″	62
28	28	46.0	47.0	52.0	105	67	42.4	24.6	25.4	14	1/4″	62
30	30	48.0	49.0	56.0	105	67	42.4	24.6	25.4	14	1/4″	65
32	32	49.8	51.0	57.0	110	67	42.4	24.6	25.4	14	1/4″	67
33	33	49.8	51.0	57.0	110	67	42.4	24.6	25.4	14	1/4″	67
35	35	53.0	54.0	61.5	113	67	42.4	24.6	25.4	14	1/4″	71
38	38	56.0	57.0	66.0	123	67	42.4	24.6	25.4	14	1/4″	76
40	40	58.0	59.0	68.0	123	67	42.4	24.6	25.4	16	3/8″	76
42	42	60.5	61.5	69.5	133	67	42.4	24.6	25.4	16	3/8″	80
43	43	60.5	61.5	70.5	133	67	42.4	24.6	25.4	16	3/8″	80
45	45	62.5	64.0	73.0	138	67	42.4	24.6	25.4	16	3/8″	83
48	48	65.6	67.0	75.0	138	67	42.4	24.6	25.4	16	3/8″	85
50	50	68.0	69.0	78.0	148	67	42.4	24.6	25.4	16	3/8″	88
53	53	72.0	73.0	83.0	148	67	42.4	24.6	25.4	18	3/8″	98
55	55	73.0	74.0	87.0	148	67	42.4	24.6	25.4	18	3/8″	97
60	60	78.0	79.0	91.0	157	67	42.4	24.6	25.4	18	3/8″	102
65	65	83.0	84.5	98.5	163	67	42.4	24.6	25.4	18	3/8″	109
70	70	93.0	95.0	108.0	178	67	42.4	24.6	25.4	18	3/8″	118
75	75	100.0	101.6	118.0	190	84	57.4	26.6	28.0	18	3/8″	129
80	80	106.4	108.0	124.0	195	84	57.4	26.6	28.0	18	3/8″	135
85	85	109.5	111.1	128.0	198	84	57.4	26.6	28.0	22	3/8″	139
90	90	115.9	117.5	135.0	205	84	57.4	26.6	28.0	22	3/8″	145
95	95	119.1	120.7	138.0	208	84	57.4	26.6	28.0	22	3/8″	148
100	100	125.4	127.0	144.0	218	84	57.4	26.6	28.0	22	3/8″	154
