Sello Mecánico de Fuelle Metálico

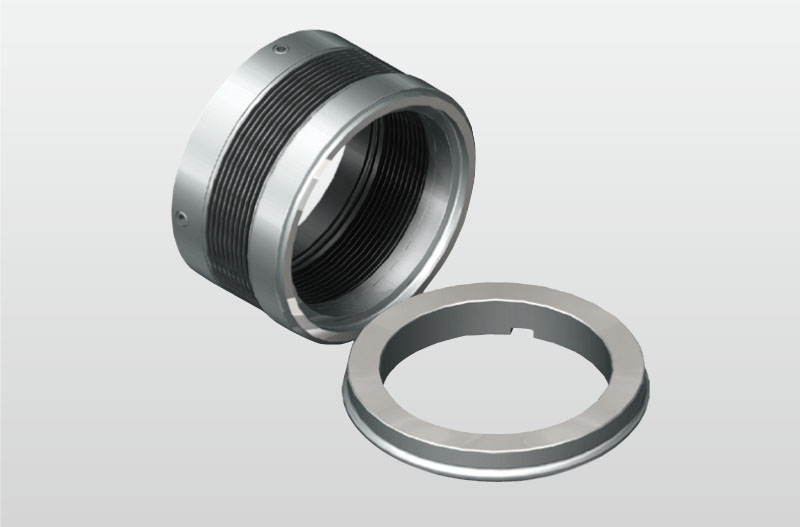

TDSMB-A01 Sello Mecánico de Fuelle Metálico (Reemplaza AESSEAL BSAI)
Metal Bellows SealCategories:Sello Mecánico de Fuelle Metálico
We're here to help
Easy ways to get the answers you need.
Contact Now
Contact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Related Product

Límites de operación:
Presión: ≤2MPa
Velocidad: ≤20m/s
Temperatura: -30℃~+204℃
● Anillo giratorio(SiC/Carbon/TC)
● Anillo estacionario(SiC/TC)
● Sello secundario(VlTON/Encapsulated Ring/PTFE)
● Fuelles metálicos(SUS316L/AM350/Inconel718/
● Titanium/Hastelly-C/Alloy-20)
● Otras piezas(SUS304/SUS316/Titanium/Hastelloy-C)

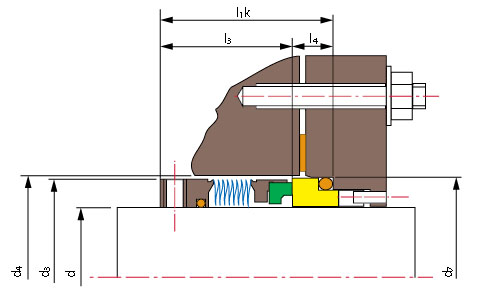

| d1 (mm) | l3 | l1k | l4 | d7 | d3 | d4 |
| 24 | 29.9 | 40.0 | 10.1 | 39 | 38 | 40 |
| 25 | 29.9 | 40.0 | 10.1 | 40 | 39 | 41 |
| 28 | 32.4 | 42.5 | 10.1 | 43 | 42 | 44 |
| 30 | 32.4 | 42.5 | 10.1 | 45 | 44 | 46 |
| 32 | 32.4 | 42.5 | 10.1 | 48 | 46 | 48 |
| 33 | 32.4 | 42.5 | 10.1 | 48 | 47 | 49 |
| 35 | 32.4 | 42.5 | 10.1 | 50 | 49 | 51 |
| 38 | 33.9 | 45.0 | 11.1 | 56 | 54 | 58 |
| 40 | 33.9 | 45.0 | 11.1 | 58 | 56 | 60 |
| 43 | 33.9 | 45.0 | 11.1 | 61 | 59 | 63 |
| 45 | 33.9 | 45.0 | 11.1 | 63 | 61 | 65 |
| 48 | 33.9 | 45.0 | 11.1 | 66 | 64 | 68 |
| 50 | 34.4 | 47.5 | 13.1 | 70 | 66 | 70 |
| 53 | 34.4 | 47.5 | 13.1 | 73 | 69 | 73 |
| 55 | 34.4 | 47.5 | 13.1 | 75 | 71 | 75 |
| 58 | 38.9 | 52.5 | 13.6 | 78 | 78 | 83 |
| 60 | 38.9 | 52.5 | 13.6 | 80 | 80 | 85 |
| 63 | 38.9 | 52.5 | 13.6 | 83 | 83 | 88 |
| 65 | 38.9 | 52.5 | 13.6 | 85 | 85 | 90 |
| 68 | 37.4 | 52.5 | 15.1 | 90 | 88 | 93 |
| 70 | 44.9 | 60.0 | 15.1 | 92 | 90 | 95 |
| 75 | 44.9 | 60.0 | 15.1 | 97 | 99 | 104 |
| 80 | 44.2 | 60.0 | 15.8 | 105 | 104 | 109 |
| 85 | 44.2 | 60.0 | 15.8 | 110 | 109 | 114 |
| 90 | 49.2 | 65.0 | 15.8 | 115 | 114 | 119 |
| 95 | 49.2 | 65.0 | 15.8 | 120 | 119 | 124 |
| 100 | 49.2 | 65.0 | 15.8 | 125 | 124 | 129 |
