Sello Mecánico de Fuelle Metálico

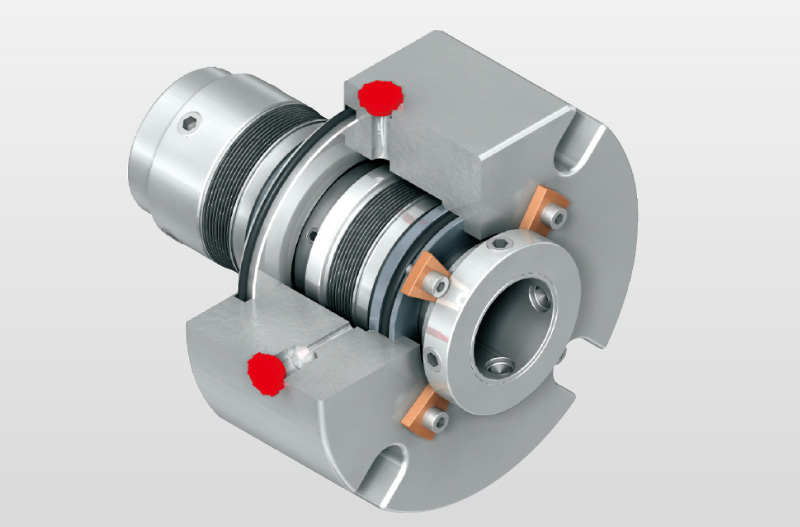

TDSMB-C03 Sello Mecánico de Fuelle Metálico (Reemplaza CHESTERTON 286) (pulgadas)
Metal Bellows SealCategories:Sello Mecánico de Fuelle Metálico
We're here to help
Easy ways to get the answers you need.
Contact Now
Contact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Related Product

Límites de operación:
Presión: ≤2MPa
Velocidad: ≤20m/s
Temperatura: -30℃~+204℃
● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (Carbono Flexible)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

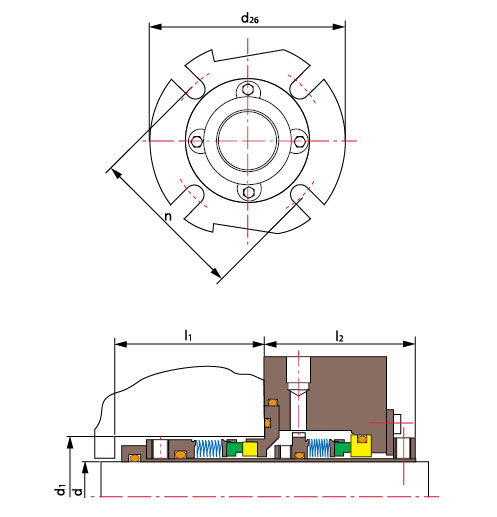

| d | d26 | d1 | l1 | l2 | n | |||
| (pulgadas) | max | min | max | min | 3/8" | 1/2" | 5/8" | |
| 1.000 | 4.13 | 1.75 | 1.88 | 2.03 | 2.06 | 2.90 | \ | \ |
| 1.125 | 4.25 | 1.75 | 1.88 | 2.03 | 2.06 | 2.90 | \ | \ |
| 1.250 | 4.25 | 2.00 | 2.13 | 2.06 | 2.13 | 3.02 | \ | \ |
| 1.375 | 4.25 | 2.00 | 2.19 | 2.06 | 2.03 | 3.25 | \ | \ |
| 1.500 | 4.50 | 2.25 | 2.38 | 2.25 | 2.13 | 3.50 | 3.63 | \ |
| 1.625 | 5.00 | 2.38 | 2.50 | 2.21 | 2.13 | 3.56 | 3.69 | \ |
| 1.750 | 5.50 | 2.50 | 2.56 | 2.34 | 2.13 | 3.63 | 3.75 | \ |
| 1.875 | 5.50 | 2.63 | 2.69 | 2.34 | 2.13 | 3.75 | 3.88 | \ |
| 2.000 | 5.50 | 2.75 | 2.94 | 2.34 | 2.13 | 4.01 | 4.13 | \ |
| 2.125 | 6.00 | 3.00 | 3.19 | 2.40 | 2.13 | 4.25 | 4.38 | 4.5 |
| 2.250 | 6.25 | 3.13 | 3.19 | 2.40 | 2.13 | 4.25 | 4.38 | 4.5 |
| 2.375 | 6.25 | 3.25 | 3.44 | 2.31 | 2.25 | 4.38 | 4.5 | 4.63 |
| 2.500 | 6.50 | 3.38 | 3.44 | 2.41 | 2.19 | 4.56 | 4.81 | 4.81 |
