• Features

Límites de operación:
Presión: ≤2MPa
Velocidad: ≤20m/s
Temperatura: -30℃~+204℃

● Anillo giratorio (SiC/SSiC/TC/Carbono)
● Anillo estacionario (SiC/SSiC/Carbono)
● Fuelles metálicos expansibles (SUS304/SUS316/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

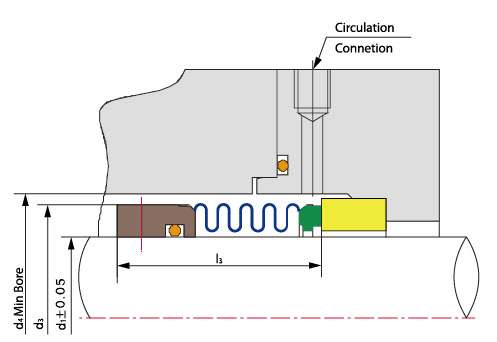

Tamaño de sello (mm)	d1	d3	d4	l3
18	18	31.0	34	31.5
20	20	31.0	36	31.5
22	22	31.0	38	31.5
24	24	36.0	40	36.7
25	25	36.0	41	37.0
28	28	39.0	44	37.5
30	30	42.0	46	38.0
32	32	46.0	48	43.0
33	33	46.0	49	43.0
35	35	48.5	51	43.0
38	38	51.5	58	42.0
40	40	54.0	60	42.0
43	43	58.4	63	47.0
45	45	58.4	65	47.0
48	48	63.7	68	47.0
50	50	63.7	70	46.5
53	53	69.0	73	56.5
55	55	71.0	75	56.5
58	58	73.3	83	56.5
60	60	76.7	85	56.5
63	63	79.4	88	56.5
65	65	83.0	90	66.5
68	68	87.8	93	66.5
70	70	87.8	95	65.5
75	75	94.0	104	65.5
80	80	100.6	109	75.0
85	85	106.0	114	75.0
90	90	110.3	119	75.0
95	95	114.9	124	75.0
100	100	121.3	129	75.0
