• Features

Límites de operación:
Presión: ≤2MPa
Velocidad: ≤20m/s
Temperatura: -73℃~+427℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (Carbono Flexible)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

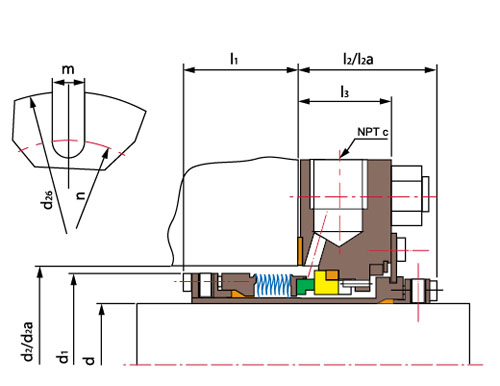

d	d26	d2	d2a	d1	l1	l2	l2a	n			m	l3	c
pulgadas	max	min	min	max	min	max	max	3/8"	1/2"	5/8"	max	max
1.125	4.25	2.00	2.25	1.94	1.64	1.92	2.05	3.12	3.24	\	0.5	1.26	3/8
1.125	4.25	1.88	2.13	0.81	1.58	1.92	2.05	2.87	\	\	0.44	1.26	3/8
1.250	4.50	2.25	2.38	2.17	1.68	1.92	2.05	3.19	3.31	\	0.5	1.26	3/8
1.375	4.75	2.38	2.63	2.30	1.68	1.99	2.11	3.49	3.62	\	0.56	1.32	3/8
1.375	4.25	2.13	2.38	2.06	1.64	1.92	2.05	3.24	\	\	0.44	1.26	3/8
1.500	5.25	2.50	2.75	2.42	1.68	1.99	2.11	3.62	3.74	\	0.56	1.32	1/2
1.625	5.50	2.63	2.88	2.55	1.68	1.99	2.11	3.74	3.87	\	0.56	1.32	1/2
1.750	5.75	2.75	3.00	2.67	1.68	1.99	2.11	3.87	3.99	\	0.56	1.32	1/2
1.875	6.00	2.88	3.25	2.80	1.80	2.05	2.17	4.12	4.24	\	0.56	1.38	1/2
2.000	6.25	3.00	3.38	2.92	1.80	2.05	2.17	4.24	4.37	4.49	0.69	1.38	1/2
2.125	6.25	3.13	3.50	3.05	1.80	2.05	2.17	4.37	4.49	4.62	0.69	1.38	1/2
2.250	6.50	3.25	3.63	3.19	1.80	2.05	2.17	4.49	4.62	4.74	0.69	1.38	1/2
2.375	6.50	3.38	3.63	3.31	1.80	2.11	2.24	4.49	4.62	4.74	0.69	1.45	1/2
2.500	6.50	3.50	3.75	3.44	1.80	2.11	2.24	4.62	4.74	4.87	0.69	1.45	1/2
2.625	6.75	3.75	4.00	3.63	1.83	2.11	2.24	4.87	4.99	5.12	0.69	1.45	1/2
