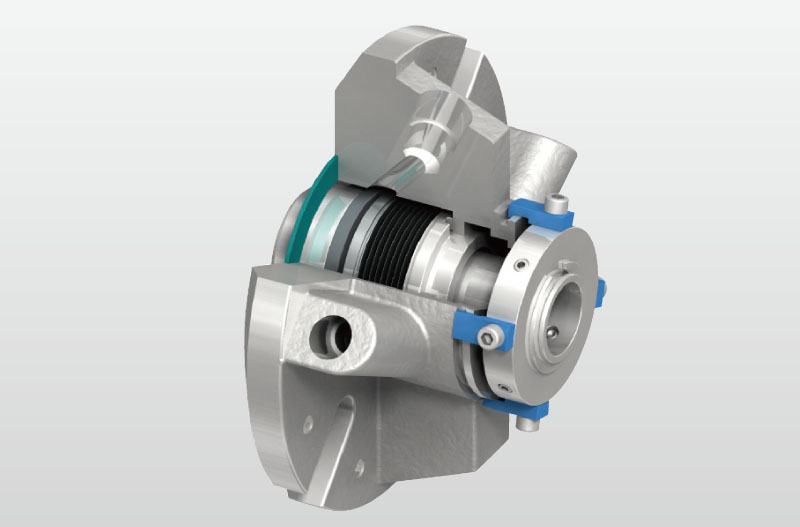

TDSMB-J08 Sello Mecánico de Fuelle Metálico (Reemplaza JOHN CRANE 5615Q )
Metal Bellows SealContact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Límites de operación:
Presión: ≤2.1MPa
Velocidad: ≤25m/s
Temperatura: -30℃~+205℃
● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/TC/Carbono)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)
|
d1 (mm) |
d3 | d4 | d26 | l12 | l23 | l39 | l56 | l90 | l91 | l92 | m | n | |
| min | max | ||||||||||||
| 24.0 | 39.7 | 41.3 | 48.0 | 101.6 | 65.4 | 34.4 | 49.6 | 13.5 | 50.8 | 18.9 | 15.8 | 13.3 | 71.2 |
| 25.0 | 39.7 | 41.3 | 48.0 | 101.6 | 65.4 | 34.4 | 49.6 | 13.5 | 50.8 | 18.9 | 15.8 | 13.3 | 71.2 |
| 28.0 | 42.9 | 44.5 | 51.2 | 104.8 | 67.3 | 36.7 | 52.4 | 13.5 | 54.0 | 18.1 | 15.0 | 13.3 | 74.5 |
| 30.0 | 44.5 | 46.1 | 56.5 | 108.0 | 65.1 | 36.7 | 52.4 | 13.5 | 54.0 | 15.9 | 12.7 | 13.3 | 79.9 |
| 32.0 | 46.0 | 47.6 | 58.3 | 108.0 | 69.3 | 36.7 | 52.4 | 13.5 | 54.0 | 20.1 | 16.9 | 13.3 | 81.6 |
| 33.0 | 49.3 | 50.8 | 61.5 | 111.1 | 69.3 | 36.7 | 52.4 | 13.5 | 54.0 | 20.1 | 16.9 | 13.3 | 84.8 |
| 35.0 | 49.3 | 50.8 | 61.5 | 111.1 | 69.3 | 36.7 | 52.4 | 13.5 | 54.0 | 20.1 | 16.9 | 13.3 | 84.8 |
| 38.0 | 55.5 | 57.2 | 68.1 | 123.8 | 69.7 | 37.8 | 54.0 | 15.1 | 55.5 | 18.9 | 15.7 | 13.3 | 91.4 |
| 40.0 | 58.7 | 60.3 | 71.4 | 127.0 | 69.7 | 37.8 | 54.0 | 15.1 | 55.5 | 18.9 | 15.7 | 14.3 | 95.7 |
| 43.0 | 61.1 | 63.0 | 74.1 | 133.4 | 69.7 | 37.8 | 54.0 | 15.1 | 55.5 | 18.9 | 15.7 | 14.3 | 98.4 |
| 45.0 | 61.1 | 63.0 | 74.1 | 133.4 | 69.7 | 37.8 | 54.0 | 15.1 | 55.5 | 18.9 | 15.7 | 14.3 | 98.4 |
| 48.0 | 65.1 | 66.7 | 74.1 | 133.4 | 69.7 | 37.8 | 54.0 | 15.1 | 55.5 | 18.9 | 15.7 | 14.3 | 98.4 |
| 50.0 | 68.3 | 70.0 | 76.6 | 139.7 | 75.3 | 40.7 | 58.7 | 27.0 | 60.3 | 19.7 | 16.5 | 14.3 | 101.6 |
| 53.0 | 71.4 | 73.0 | 85.3 | 148.8 | 75.3 | 40.7 | 58.7 | 15.1 | 60.3 | 19.7 | 16.5 | 17.4 | 113.5 |
| 55.0 | 72.9 | 75.0 | 85.3 | 148.8 | 75.3 | 40.7 | 58.7 | 15.1 | 60.3 | 19.7 | 16.5 | 17.4 | 113.5 |
| 58.0 | 74.6 | 76.2 | 88.5 | 165.1 | 75.3 | 40.7 | 58.7 | 15.1 | 60.3 | 19.7 | 16.5 | 17.4 | 116.0 |
| 60.0 | 77.8 | 79.4 | 91.7 | 165.1 | 77.8 | 43.6 | 62.6 | 15.9 | 64.2 | 18.3 | 15.2 | 17.4 | 119.9 |
| 63.0 | 84.1 | 85.7 | 98.8 | 171.5 | 75.7 | 43.6 | 65.1 | 15.9 | 66.7 | 13.8 | 10.6 | 17.4 | 127.0 |
| 65.0 | 84.1 | 85.7 | 98.8 | 171.5 | 75.7 | 43.6 | 65.1 | 15.9 | 66.7 | 13.8 | 10.6 | 17.4 | 127.0 |
| 68.0 | 90.5 | 92.1 | 103.2 | 171.5 | 78.4 | 41.3 | 63.5 | 15.9 | 65.1 | 18.1 | 14.9 | 17.4 | 131.3 |
| 70.0 | 90.5 | 92.1 | 103.2 | 171.5 | 78.4 | 41.3 | 63.5 | 15.9 | 65.1 | 18.1 | 14.9 | 17.4 | 131.3 |
| 75.0 | 100.0 | 101.6 | 113.5 | 196.9 | 78.4 | 45.4 | 65.1 | 17.4 | 66.7 | 16.5 | 13.4 | 20.6 | 145.3 |
