• Features

Límites de operación:
Presión : ≤2.5MPa
Velocidad: ≤16m/s
Temperatura: -40℃~220℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/TC/Carbono)
● Sello secundario (VITÓN/AFLAS/Kalrez)
● Otras piezas (C-276/Duplex/SUS316)

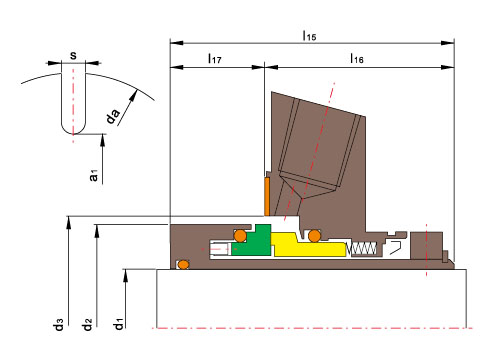

d1	d2	d3		l15	l16	l17	a1	da	s
(mm)		min	max
1.000	1.693	1.750	2	3.130	2.102	1.028	2.440	4.134	0.520
1.125	1.811	1.875	2.05	3.130	2.102	1.028	2.440	4.134	0.520
1.250	1.960	2.000	2.25	3.130	2.102	1.028	2.640	4.330	0.520
1.375	2.086	2.125	2.42	3.130	2.102	1.028	2.750	4.449	0.520
1.500	2.200	2.250	2.625	3.130	2.102	1.028	2.950	4.842	0.520
1.625	2.340	2.375	2.7	3.130	2.102	1.028	3.030	4.842	0.599
1.750	2.460	2.500	2.812	3.130	2.102	1.028	3.190	5.433	0.599
1.875	2.582	2.625	2.94	3.130	2.102	1.028	3.190	5.433	0.599
2.000	2.677	2.750	3.19	3.130	2.102	1.028	3.430	5.827	0.599
2.125	2.834	2.875	3.437	3.130	2.102	1.028	3.820	5.827	0.709
2.250	2.960	3.000	3.56	3.130	2.102	1.028	3.940	6.181	0.709
2.375	3.070	3.125	3.59	3.130	2.102	1.028	4.020	6.181	0.709
2.500	3.212	3.250	3.8	3.130	2.102	1.028	4.170	6.417	0.709
2.625	3.338	3.375	3.937	3.130	2.102	1.028	4.290	6.417	0.709
2.750	3.660	3.750	4.25	3.130	2.102	1.028	4.650	7.008	0.709
