• Features

Límites de operación:
Presión: ≤2MPa
Velocidad: ≤23m/s
Temperatura: -40℃~+220℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE/EPDM)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

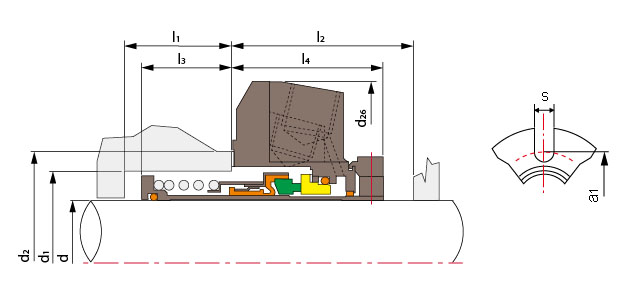

d (pulgadas)	d3		d2	d26	l4	l2	l3	l1	a1	s
	min	max
1.000	1.625	1.875	2.115	3.69~3.75	1.913	1.975	0.962	1.024	2.750	0.440
1.125	1.750	2.000	2.240	3.69~3.75	1.913	1.975	\	\	2.875	0.440
1.250	1.890	2.245	2.495	4.19~4.25	1.913	1.975	\	\	3.125	0.562
1.375	2.000	2.375	2.615	3.94~4.00	1.913	1.975	1.127	1.189	3.250	0.440
1.437	2.250	2.688	2.775	4.72~4.78	1.973	2.035	\	\	3.750	0.560
1.500	2.250	2.525	2.775	4.69~4.75	1.973	2.035	\	\	3.750	0.560
1.625	2.375	2.780	3.030	4.69~4.75	1.973	2.035	\	\	3.750	0.560
1.750	2.500	2.875	3.150	4.94~5.00	1.973	2.035	1.152	1.214	3.875	0.560
1.875	2.625	2.875	3.150	4.94~5.00	1.973	2.035	1.153	1.214	3.875	0.560
1.937	2.690	2.920	\	\	1.973	2.035	\	\	\	\
2.000	2.750	3.030	3.280	5.00~5.12	1.973	2.035	\	\	4.120	0.688
2.125	2.875	3.125	3.430	5.94~6.00	1.973	2.035	1.092	1.154	4.250	0.750
2.250	3.000	3.280	\	\	1.973	2.035	\	\	\	\
2.375	3.125	3.687	3.975	6.32~6.38	1.973	2.035	1.287	1.349	4.875	0.750
2.437	3.375	3.450	\	6.32~6.38	1.942	2.004	\	\	4.875	0.750
2.500	3.375	3.687	3.975	6.32~6.38	1.973	2.035	1.287	1.349	4.870	0.750
2.625	3.625	4.312	4.615	7.19~7.25	2.726	2.788	1.129	1.191	5.625	0.880
2.750	3.750	4.312	4.615	7.19~7.25	2.726	2.788	1.129	1.191	5.625	0.880
