• Features

Límites de operación:
Presión : ≤2MPa
Velocidad: ≤23m/s
Temperature: -40℃~+220℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/Carbono)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

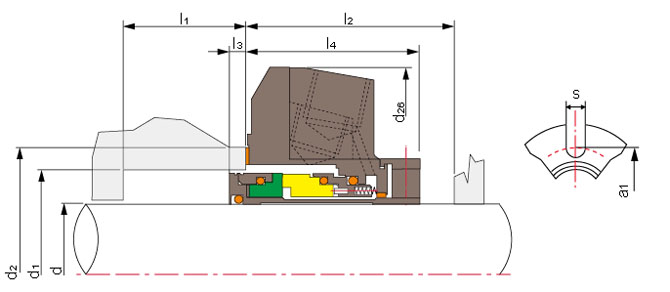

d (pulgadas)	d3		d2	d26	l4	l2	l3	l1	a1	s
	min	max
1.000	1.625	1.875	2.115	3.69~3.75	1.913	1.975	0.212	0.274	2.75	0.44
1.125	1.750	2.000	2.240	3.69~3.75	1.913	1.975	0.212	0.274	2.875	0.44
1.250	1.890	2.245	2.495	4.19~4.25	1.913	1.975	0.212	0.274	3.125	0.562
1.375	2.000	2.375	2.615	3.94~4.00	1.913	1.975	0.212	0.264	3.25	0.44
1.437	2.250	2.688	2.775	4.72~4.78	1.973	2.035	0.222	0.284	3.75	0.56
1.500	2.250	2.525	2.775	4.69~4.75	1.973	2.035	0.202	0.264	3.75	0.56
1.625	2.375	2.780	3.030	4.69~4.75	1.973	2.035	0.202	0.264	3.75	0.56
1.750	2.500	2.875	3.150	4.94~5.00	1.973	2.035	0.202	0.264	3.875	0.56
1.875	2.625	2.875	3.150	4.94~5.00	1.973	2.035	0.202	0.264	3.875	0.56
1.937	2.690	2.920	\	\	1.973	2.035	0.207	0.269	\	\
2.000	2.750	3.030	3.280	5.00~5.12	1.973	2.035	0.202	0.264	4.12	0.688
2.125	2.875	3.125	3.430	5.94~6.00	1.973	2.035	0.202	0.264	4.25	0.75
2.250	3.000	3.280	\	\	1.973	2.035	0.206	0.268	\	\
2.375	3.125	3.687	3.975	6.32~6.38	1.973	2.035	0.202	0.264	4.875	0.75
2.437	3.375	3.450	\	6.32~6.38	1.942	2.004	0.233	0.295	4.875	0.75
2.500	3.375	3.687	3.975	6.32~6.38	1.973	2.035	0.202	0.264	4.87	0.75
2.625	3.625	4.312	4.615	7.19~7.25	2.726	2.788	0.204	0.266	5.625	0.88
2.750	3.750	4.312	4.615	7.19~7.25	2.726	2.788	0.204	0.266	5.625	0.88
