• Features

Límites de operación:
Presión: ≤2MPa
Velocidad: ≤25m/s
Temperatura: ≤+260℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

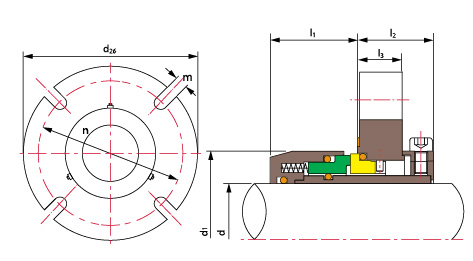

d （mm)	d26	d1	l1	l2	n			m	l3
	max				10mm	12mm	16mm
35	118	60	39	34	95	\	\	12	20
38	137	95	39	34	114	\	\	12	20
40	128	70	39	34	105	\	\	12	20
45	128	70	39	34	105	\	\	12	20
48	147	105	39	34	124	\	\	12	20
50	150	85	39	34	\	125	\	18	20
50	150	85	39	34	\	\	145	18	20
55	150	85	39	34	\	125	\	14	20
60	160	95	39	34	\	135	145	18	20
60	160	95	39	34	\	\	\	18	20
65	160	102	50	46	\	135	\	14	26
65	173	131	50	46	150	\	\	12	26
70	200	117	50	46	\	\	175	18	26
75	183	140	50	46	160	\	\	12	26
80	199	122	50	46	\	\	170	18	26
85	199	122	50	46	\	\	170	18	26
85	199	132	50	46	\	\	190	18	26
90	209	132	50	46	\	\	180	18	26
95	209	132	50	46	\	\	180	18	26
100	213	171	50	46	190	\	\	12	26
