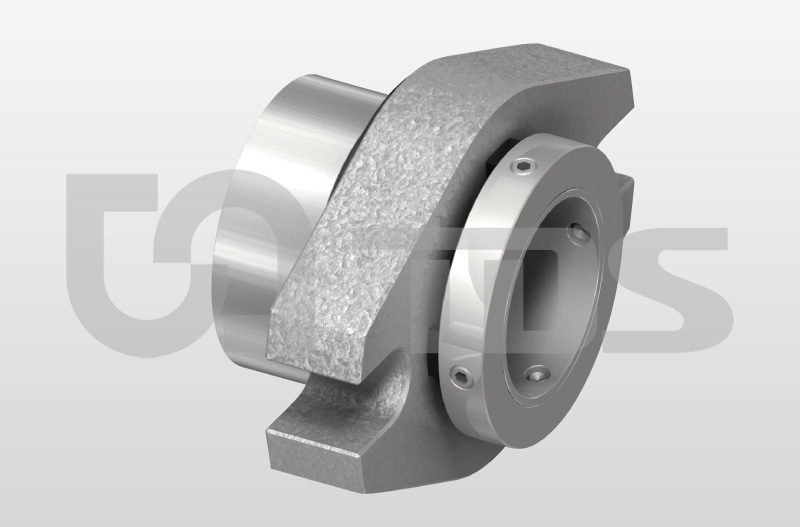

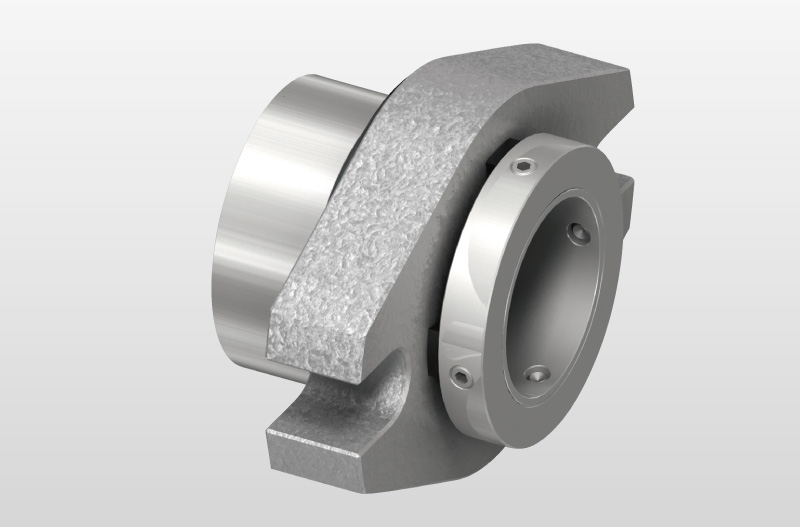

• Features

Límites de operación:
Presión: ≤2.5MPa
Velocidad: ≤16m/s
Temperatura: ≤+200℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

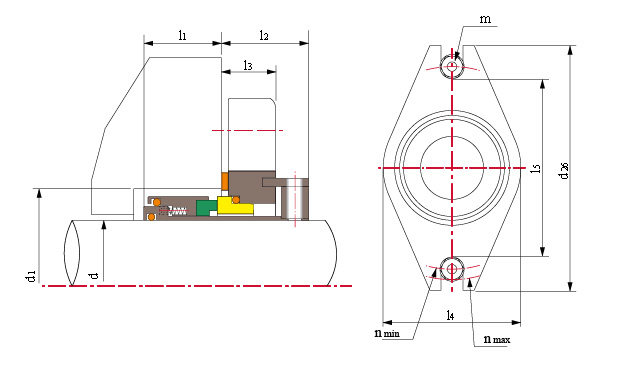

d (mm)	d26	l5	l3	l4	d1		n		m	l1	l2
					min	max	min	max
24.0	101.6	55.6	20.7	56.1	40.0	48.0	69.9	88.9	12.0	28.6	31.8
25.0	101.6	55.6	20.7	56.1	41.0	48.0	69.9	88.9	12.0	28.6	31.8
28.0	104.8	58.8	20.7	59.3	44.0	50.0	73.1	92.1	12.0	28.6	31.8
30.0	108.0	61.9	20.7	62.4	46.0	54.0	76.2	95.3	12.0	28.6	31.8
32.0	108.0	61.9	20.7	62.4	48.0	54.0	76.2	95.3	12.0	28.6	31.8
33.0	108.0	61.9	20.7	62.4	49.0	55.0	76.2	95.3	12.0	28.6	31.8
35.0	108.0	66.7	20.7	67.2	51.0	59.0	81.0	95.3	12.0	28.6	31.8
38.0	114.3	71.5	22.3	72.0	57.2	62.0	85.8	101.6	12.0	28.6	33.4
40.0	114.3	71.5	22.3	72.0	58.0	64.0	85.8	101.6	12.0	28.6	33.4
43.0	120.7	74.6	22.3	75.1	61.0	67.0	88.9	108.0	12.0	28.6	33.4
45.0	127.0	77.8	23.8	78.3	63.5	69.0	92.1	114.3	12.0	30.2	35.0
48.0	133.4	81.0	23.8	81.5	66.7	72.0	95.3	120.7	12.0	30.2	35.0
50.0	133.4	81.0	23.8	81.5	68.0	74.0	95.3	120.7	12.0	30.2	35.0
53.0	139.7	84.2	25.4	84.7	71.0	77.0	101.6	123.9	16.0	30.2	36.5
55.0	146.1	87.3	25.4	87.8	74.0	79.0	104.8	130.2	16.0	30.2	36.5
58.0	165.1	95.3	25.4	98.9	79.4	85.7	115.9	146.0	20.0	30.2	36.5
60.0	165.1	95.3	25.4	98.9	79.4	85.7	115.9	146.0	20.0	30.2	36.5
63.0	177.8	111.2	25.4	121.2	85.8	101.6	131.8	158.7	20.0	28.6	41.2
65.0	177.8	111.2	25.4	121.2	88.9	101.6	131.8	158.7	20.0	28.6	41.2
68.0	177.8	111.2	25.4	121.2	92.1	101.6	131.8	158.7	20.0	28.6	41.2
70.0	177.8	111.2	25.4	121.2	92.1	101.6	131.8	158.7	20.0	28.6	41.2
75.0	190.5	125.4	31.7	130.7	98.5	114.3	146.1	171.4	20.0	30.2	50.8
80.0	190.5	125.4	31.7	130.7	101.6	114.3	146.1	171.4	20.0	30.2	50.8
85.0	203.2	135.0	31.7	140.2	108.0	123.8	155.6	184.1	20.0	30.2	50.8
90.0	215.9	144.5	31.7	149.7	114.3	133.3	165.1	196.8	20.0	30.2	50.8
95.0	215.9	144.5	31.7	149.7	117.5	133.3	165.1	196.8	20.0	30.2	50.8
100.0	228.6	154.0	31.7	156.1	123.9	139.7	174.7	209.5	20.0	30.2	50.8
