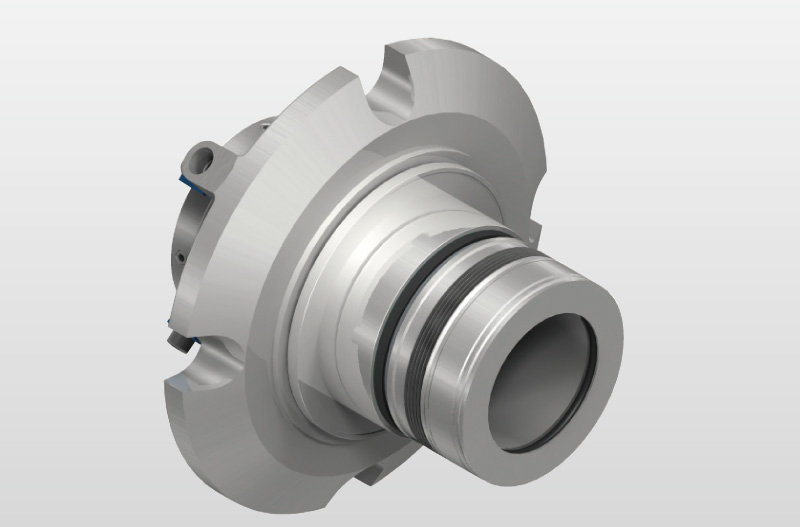

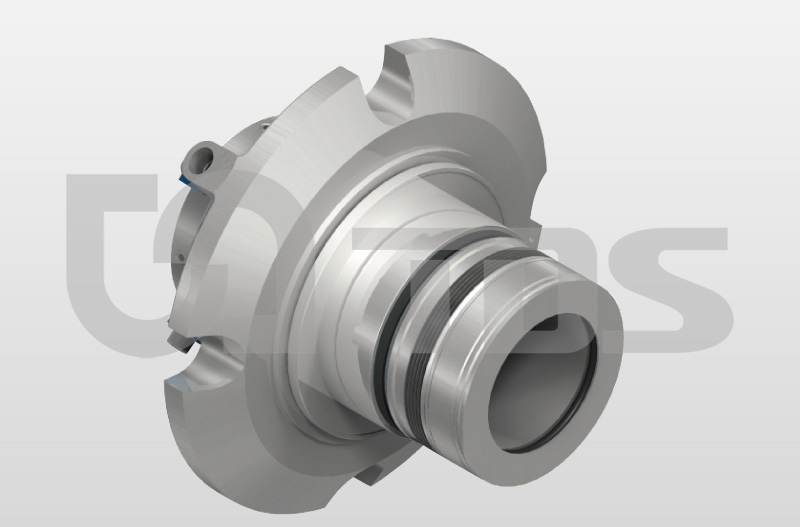

TDSMB-FS09 Sello Mecánico de Fuelle Metálico (Reemplaza FLOWSERVE ISC2BB) (pulgadas)
Metal Bellows SealContact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Límites de operación:
Presión: ≤21MPa(Diámetro del eje≤75mm)
≤23MPa(Diámetro del eje>75mm)
Velocidad: ≤25m/s
Temperatura: -30℃~+205℃
● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)
|

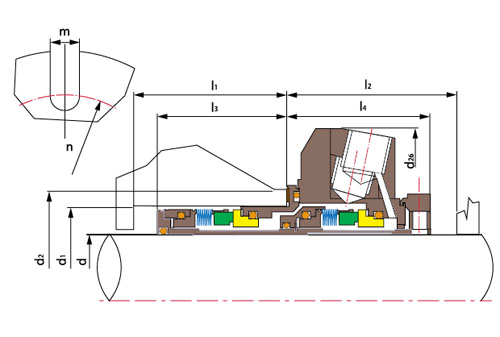

d (pulgadas) |
d1 | d2 | d26 | l3 | l1 | l4 | l2 | n | m | |
| min | max | |||||||||
| 1.000 | 1.625 | 1.875 | 2.115 | 3.69~3.75 | 1.838 | 1.900 | 2.062 | 2.124 | 2.750 | 0.440 |
| 1.125 | 1.750 | 2.000 | 2.240 | 3.69~3.75 | 1.838 | 1.900 | 2.062 | 2.124 | 2.875 | 0.440 |
| 1.250 | 1.890 | 2.245 | 2.495 | 4.19~4.25 | 1.838 | 1.900 | 2.062 | 2.124 | 3.125 | 0.562 |
| 1.375 | 2.000 | 2.375 | 2.615 | 3.94~4.00 | 1.838 | 1.900 | 2.062 | 2.124 | 3.250 | 0.440 |
| 1.437 | 2.250 | 2.688 | 2.775 | 4.72~4.78 | 1.903 | 1.965 | 2.122 | 2.184 | 3.750 | 0.560 |
| 1.500 | 2.250 | 2.525 | 2.775 | 4.69~4.75 | 1.903 | 1.965 | 2.122 | 2.184 | 3.750 | 0.560 |
| 1.625 | 2.375 | 2.780 | 3.030 | 4.69~4.75 | 1.903 | 1.965 | 2.122 | 2.184 | 3.750 | 0.560 |
| 1.750 | 2.500 | 2.875 | 3.150 | 4.94~5.00 | 1.903 | 1.965 | 2.122 | 2.184 | 3.875 | 0.560 |
| 1.875 | 2.625 | 2.875 | 3.150 | 4.94~5.00 | 1.903 | 1.965 | 2.122 | 2.184 | 3.875 | 0.560 |
| 1.937 | 2.690 | 2.920 | \ | \ | 1.903 | 1.965 | 2.122 | 2.184 | \ | \ |
| 2.000 | 2.750 | 3.030 | 3.280 | 5.00~5.12 | 1.903 | 1.965 | 2.122 | 2.184 | 4.120 | 0.688 |
| 2.125 | 2.875 | 3.125 | 3.430 | 5.94~6.00 | 1.903 | 1.965 | 2.122 | 2.184 | 4.250 | 0.750 |
| 2.250 | 3.000 | 3.280 | \ | \ | 1.903 | 1.965 | 2.122 | 2.184 | \ | \ |
| 2.375 | 3.125 | 3.687 | 3.975 | 6.32~6.38 | 1.903 | 1.965 | 2.122 | 2.184 | 4.875 | 0.750 |
| 2.437 | 3.375 | 3.450 | \ | 6.32~6.38 | 1.934 | 1.996 | 2.091 | 2.153 | 4.875 | 0.750 |
| 2.500 | 3.375 | 3.687 | 3.975 | 6.32~6.38 | 1.903 | 1.965 | 2.122 | 2.184 | 4.875 | 0.750 |
| 2.625 | 3.625 | 4.312 | 4.615 | 7.19~7.25 | 2.429 | 2.491 | 2.906 | 2.968 | 5.625 | 0.880 |
| 2.750 | 3.750 | 4.312 | 4.615 | 7.19~7.25 | 2.429 | 2.491 | 2.906 | 2.968 | 5.625 | 0.880 |
